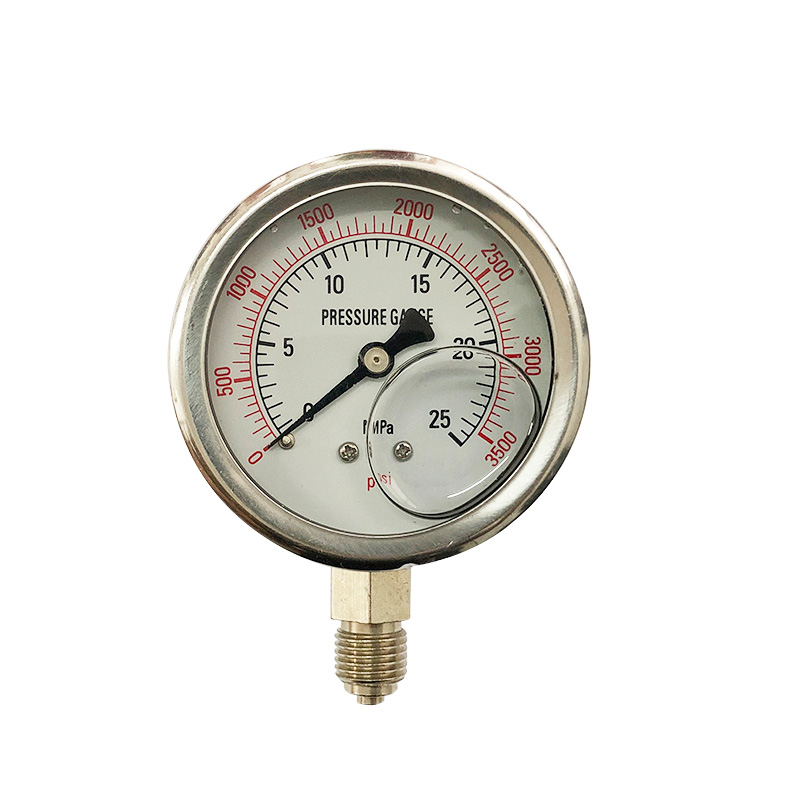

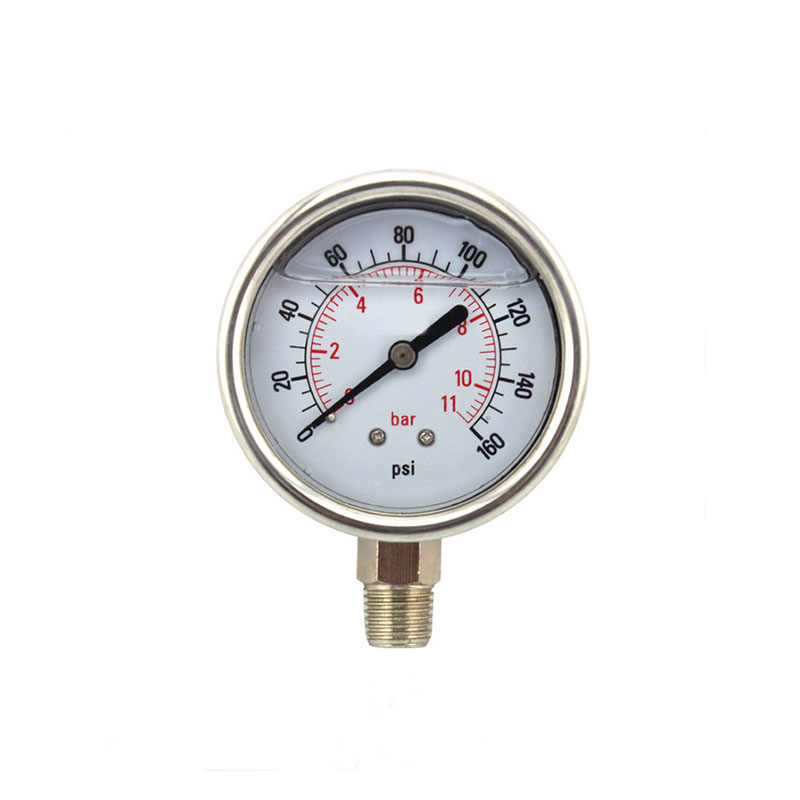

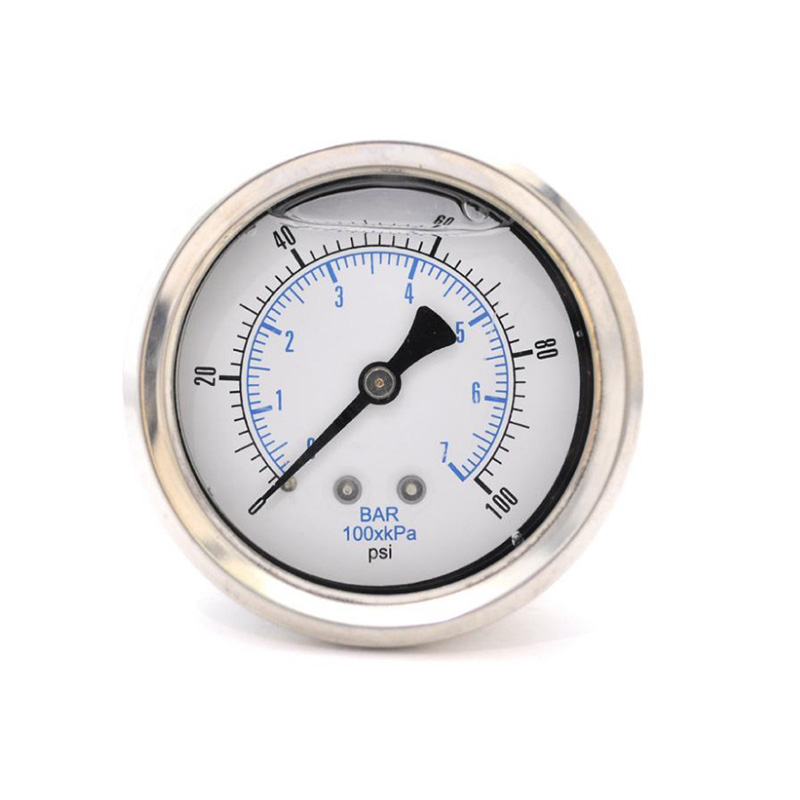

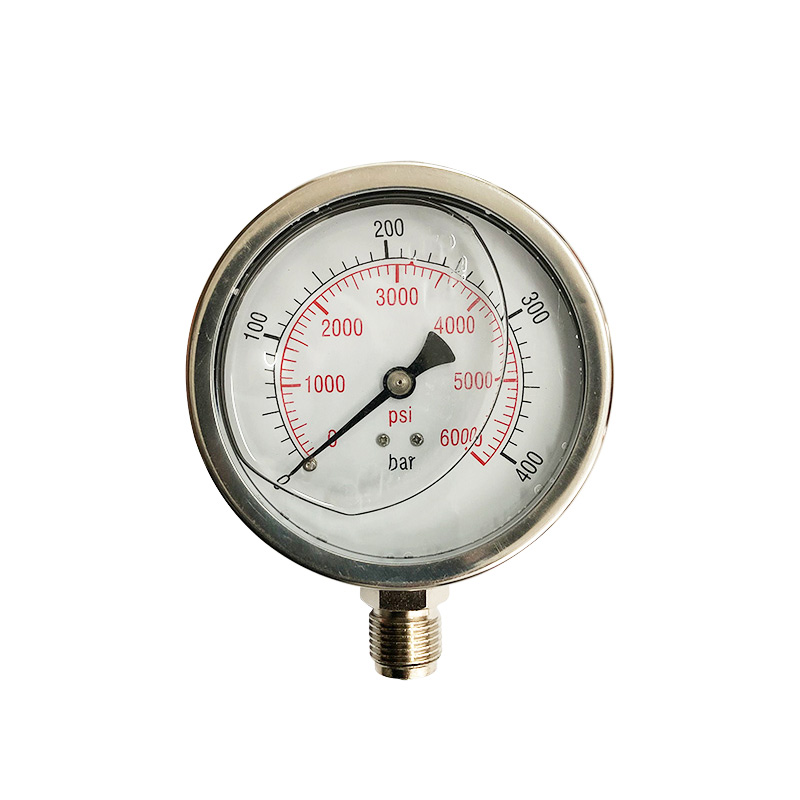

JM-FS-17
Category:FS
Release date:2022-10-12 14:10:29

Code Option Model Indication
F=Glycerin filled pressure gauge
S=Stainless steel internal


Series "FS"
  • Suitable for measuring gaseous media both corrosive and non-corrosive
  • Used to measure natural gas pressure as well air flow indications and leak detection
  • Vacuum pumps, air compressors, air filters, gas burners, vacuum ovens, suction regulators and respirators They are
       They are aimed at all those sectors of the industry where good quality instruments with a stainless steel case are available.

Pressure gauge made according UNI EN 837.1 norms
Glycerine filled All stainless steel
Materials Case + roll on bezel:
Bayonet Stainless steel AISI 304 with blow-out device
Window: Safty glass
Dial: White aluminium
Pointer: Black plastic
Pressure connection: AISI 316 stainless steel
Pressure element: Bourdon tube 316 SS, soft soldered ≤ 60 bar C-type, > 60 bar helical type Sn-Ag soldered
Movement: AISI 304 SS
Liquid filling Glycerine 99.5%
Working pressure: Steady: 75 % of full scale value
Fluctuating: 60 % of full scale value Short time: full scale value
Temperature limits: Ambient: -20 +60 °C
Accuracy 2,5% on dial 40 and 50
Accuracy 1,6% on dial 63 and 80
Accuracy 1% on dial 100 and 150
Working Temperature -40 +60° C Overpressure 15%


Ranges
  Normalized range: Vacum -1 / 0 Bar;
  Compound -1+0,6; -1+1,5; -1+3;...
  Pressure 0.6; 1; 1,6; 2,5; 4; .... 1000 Bar + Psi
